TP-Link TLMR105 Sim Router

General

Brand

TP-Link

Model

TP-Link TL-MR105

Router Type

Wireless & Ethernet

Hardware

Data Transfer Rate (Wifi)

300 Mbps

WiFi Network Standards

IEEE 802.11b/g/n

LAN Network Standard

10/100

WAN Network Standard

10/100

Data Transfer Rate (Lan)

100 Mbps

Interface

Interface(s)

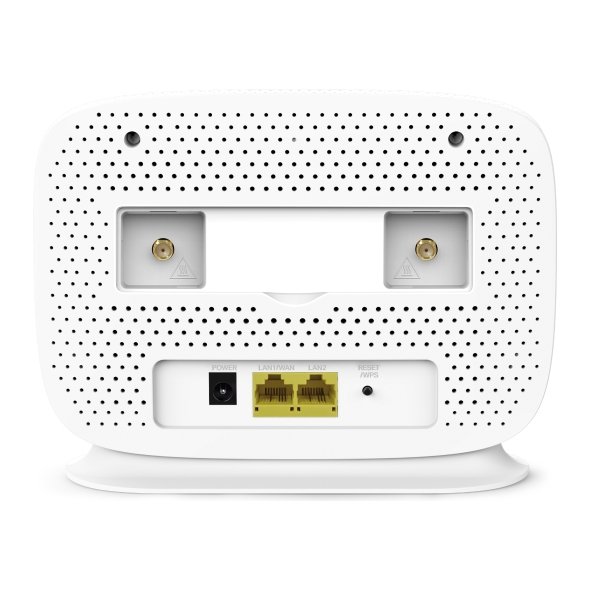

1 x 10/100 RJ45 LAN, 1 x 10/100 RJ45 LAN/WAN Combo, 1 x Nano SIM

Number of WAN Port

1

Number of LAN Port

1

USB Interface

No

Internet Connectivity

WAN + SIM

SIM Card Slot Included

Yes

Sim Card Slot

Yes

Wireless

Antenna (Type & Qty)

2 x Internal

WAN Type

Dynamic IP/ Static IP/ PPPoE/ PPTP(Dual Access)/ L2TP(Dual Access)

Wi-Fi Generation

Wi-Fi 4

Band

Single

Wi-Fi Coverage (Approximate)

Up to 1500 Sq. ft

Number of Concurrent User

Up to 32 User

Performance

3G/4G

Yes

Mesh Technology

No

MIMO Technology

No

Security

Operating Frequency

2.4 GHz

Operation/Working Wireless Modes

Router, 3G/4G

Security Protocols

IPv4, IPv6

Firewall Protocols

IPv4 SPI Firewall

VPN Support

No

Voice Assistant

No

Built in Antivirus

No

Best For

Medium Home

Electrical

Power

9V/0.85A

Operating Temperature

0 Degree C to 40 Degree C

Operating Humidity

10%~90% non-condensing

Storing/Storage Humidity

5%~90% non-condensing

Physical Description

Button

Reset/ WPS

Dimensions

174 x 130 x 60mm

Color

White

Warranty

Warranty Details

1 Year (Without Adapter)

Additional Info

Feature

Cutting-edge 4G network: Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps, Plug a SIM card and play : No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests, Wi-Fi router mode: Plug an Ethernet cable into the LAN/WAN port for flexible access if you can`t get a 4G connection

Specialty

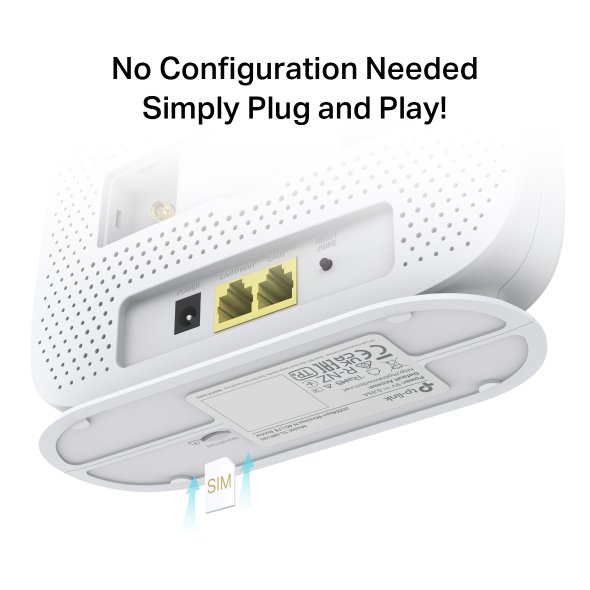

No Configuration Needed Simply Plug and Play! Share Your 4G LTE Network, Advanced Software Functions Help You Enhance Your Network Safety and Effectiveness, Wi-Fi Where You Need It, Reliable Access for Up to 32 Devices Simultaneously

Others

Reception Sensitivity: 11g 54M: -74dBm, 11n HT20: -73dBm, 11n HT40: -70dBm, Transmit Power: < 20 dBm (2.4 GHz), Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless: Statistics, WAN Failover: Yes, Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions, Network Type: 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28, (2100/1800/850/2600/900/800/750 MHz), TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz), 3G: DC-HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz), Management: Local Management, Remote Management, DHCP: Server, DHCP Client List, Address Reservation, Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ, Dynamic DNS: TP-Link, DynDns, NO-IP, Administration: Upgrade Firmware, Factory Default, System Log, Diagnostic Tools, Package Contents: 300 Mbps Wireless N 4G LTE TL-MR105, 1.5m Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide, Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser, Nano SIM Card

Certifications

CE, RoHS

Country Of Origin

China

Made in/ Assemble

China
